Multiple Rip Saw
MRS-700｜MRS-730
Tags :
Heavy duty
Multiple
Heavy duty Multiple Rip Saw
A ripping technology breakthrough, with a top and bottom saw arbor design.
Main Features
- This machine is designed and engineered for the first and second stage of material preparation after log is cut.
- Ideally suited for pallet, building materials, and door frame manufacturing.
- Great cutting capacity up to 220 / 300 mm thick and can replace a band saw.
- Computer control for adjusting the cutting thickness or blade diameter.

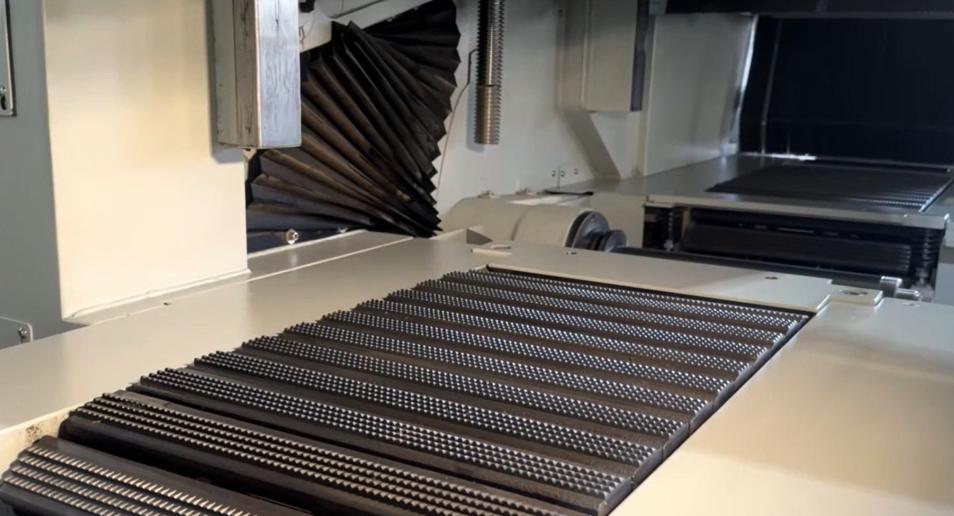

- The caterpillar chain drive feeding system.
- 5 rows of anti-kickback fingers and safety guard.
- Variable feed speed ranging from 4 to 25 M/min.
- Automatic feed stop for overload protection.

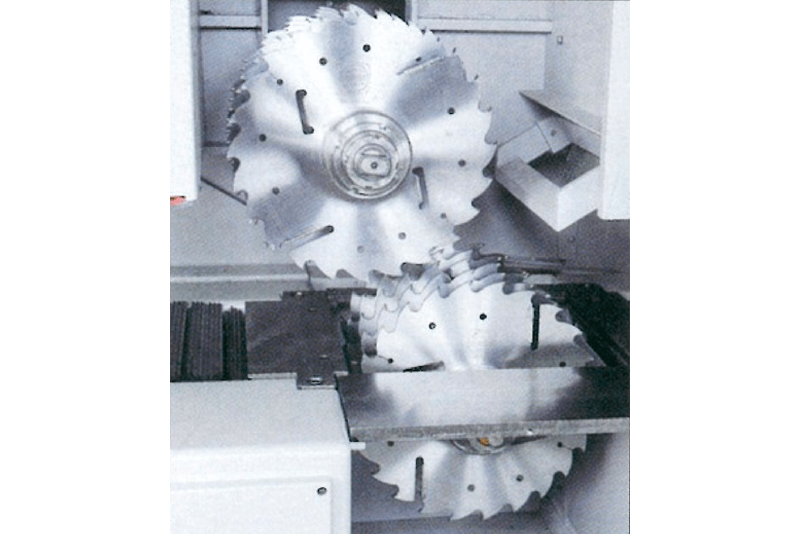

Upper And Lower Saw Arbor Construction
- The machine is designed with upper and lower saw arbors, which give an increased cutting thickness up to 220 mm.

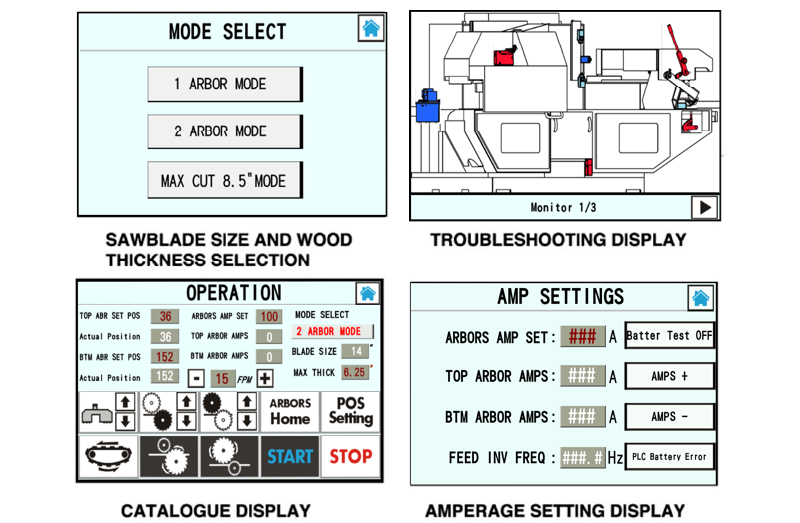

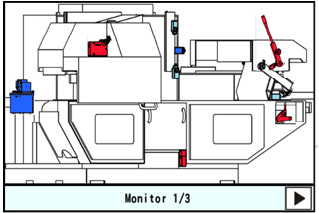

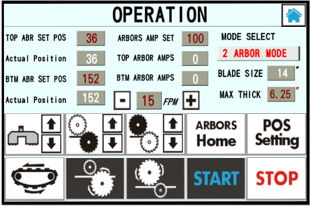

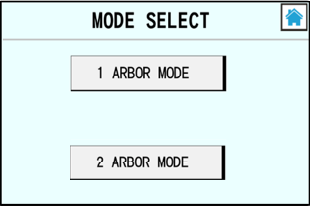

PLC Control (Optional)
- Computerized positioning of upper and lower saw arbors make changing the thickness of cut and varying the blade diameter easy and safe.

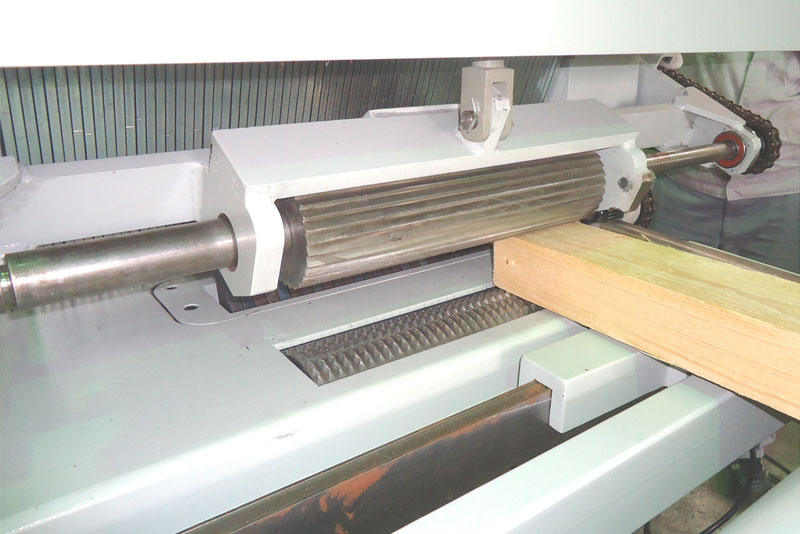

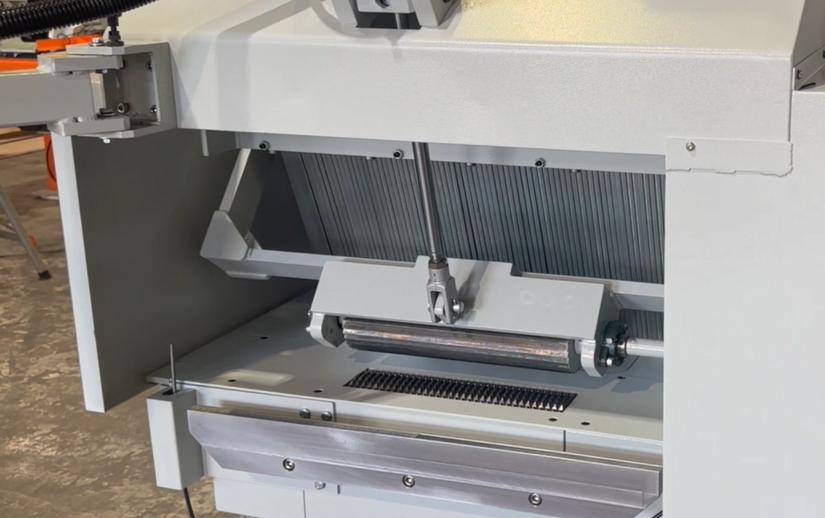

Feed System
- This is employed with a link chain feed which ensures great straight-line accuracy and allows for variable speeds at 4~25 M/min. The speed is displayed on a digital readout for added convenience.

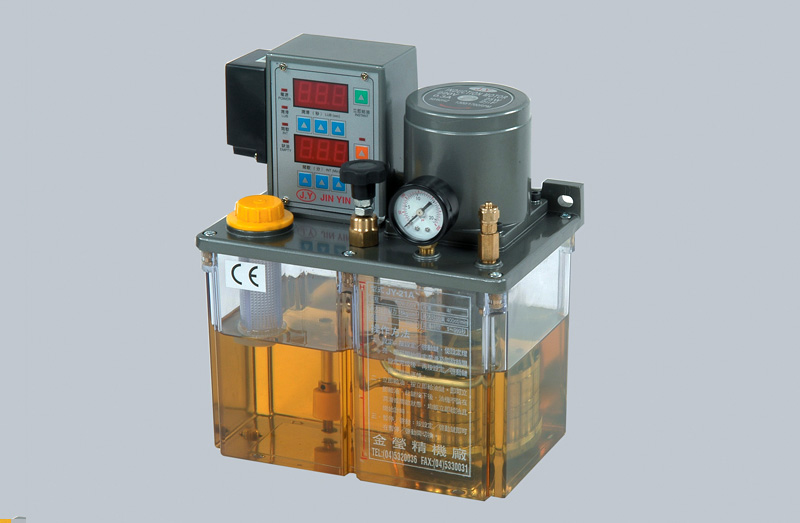

Automatic adjustable lubrication system
- To ensure a permanent oil film between the chain and the guide rails.
- If there is insufficient oil in the oil tank, the warning lamp lights up, and the link chain stops running automatically
- To adjust the interval time (oil supply second) and lubrication time with buttons
Specification
| Specification | MRS-700 | MRS-730 |
|---|---|---|
| Saw motor | 75HP, 100HP, 125HP (2 arbors) | 75HP, 100HP, 125HP (2 arbors) Normal Type, Without IE3 Grade |
| Max. cutting thickness | 220mm | 300mm With optional short-stock device：280mm |
| Max. cutting width | 350mm | |
| Max. material width can pass through | 610mm with YEAR 2009 CE safety cover |
— |
| Min. working length | 900mm | 1100mm |
| Max. saw blade diameter | Ø355mm (14") | Ø455mm (18") |
| Min. saw blade diameter | Ø305mm (12") | Ø355mm (14") |
| Bore of saw blade | Ø70 mm | |
| Saw arbor diameter | Ø55 mm | |
| Saw arbor speed | 3300 rpm | 2700 rpm |
| Feed speed | 4~25 m/min | |
| Feed motor | 5 HP | |
| Pressure roller housing elevation motor | 1/2 HP | |
| Saw arbor elevation motor | 1/2 HP ×2 | |
*We reserve the right to amend any of the above specifications without prior notice.
