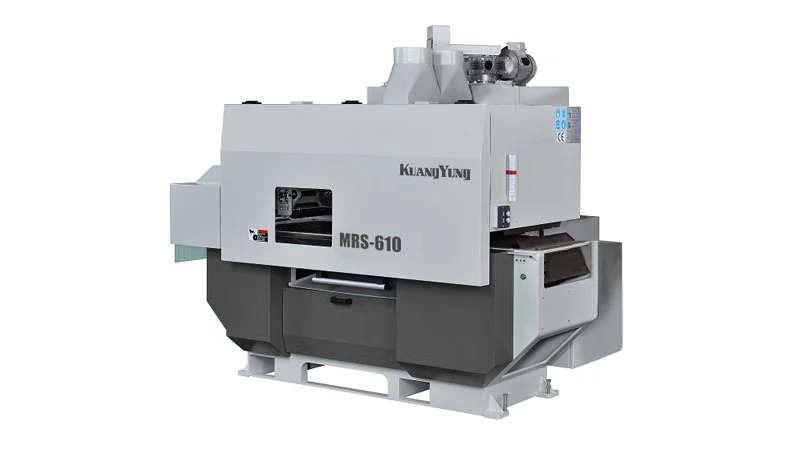

Multiple Rip Saw
MRS-610
Tags :
Multiple
Precicson-Engineered for Speed and Stablility
Precision-Engineered for Speed and Stability Multiple Rip Saw
Easy to Learn and Operate. a user-friendly industrial personal computer (IPC), controller and touch panel.It makes it easy to configure rip sawing operations.
Main Features
- Extra large 610mm cutting width
Available Models
- Employs a touch screen for easy operation and learning.
- All functions displayed on the screen.
- The IPC computer provides unlimited settings for cutting dimension capacity to meet flexible production demands.
- Convenient troubleshooting is achieved through the computer display.
- Driven by a servomotor, featuring fast movement and outstanding positioning accuracy.
Air-loaded feed rollers
- All feed rollers are air loaded to ensure outstanding stability during cutting and smooth feeding ability.
Mechanical lubrication system
- Provides proper lubrication and prolong lifetime of caterpillar chain and rail.
Auxiliary powered outfeed roller
- The additional powered outfeed roller, equipped at the outfeed end, ensures smooth workpiece outfeed even for think, heavy and moist wood.
Saw Arbor Support
- Maximum stability of sawarbor is achieved through the firm support.

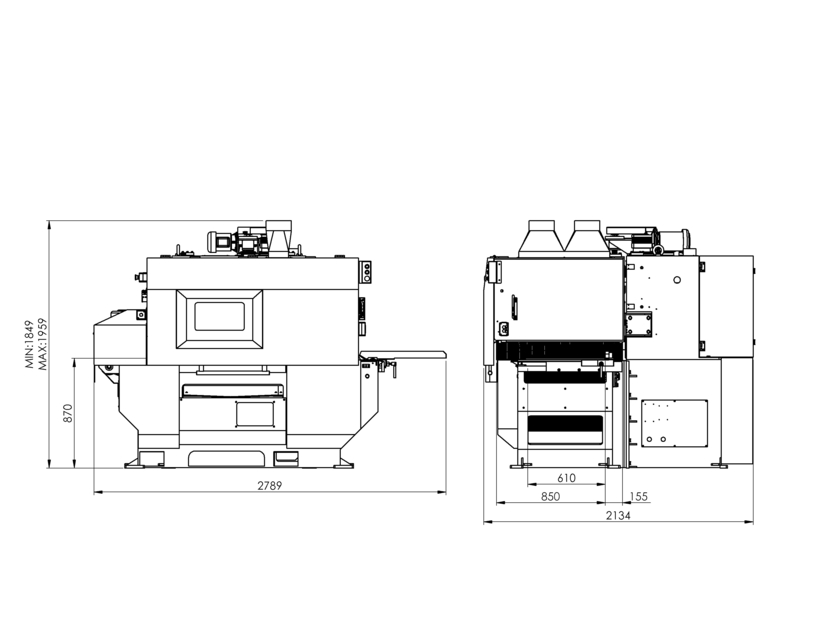

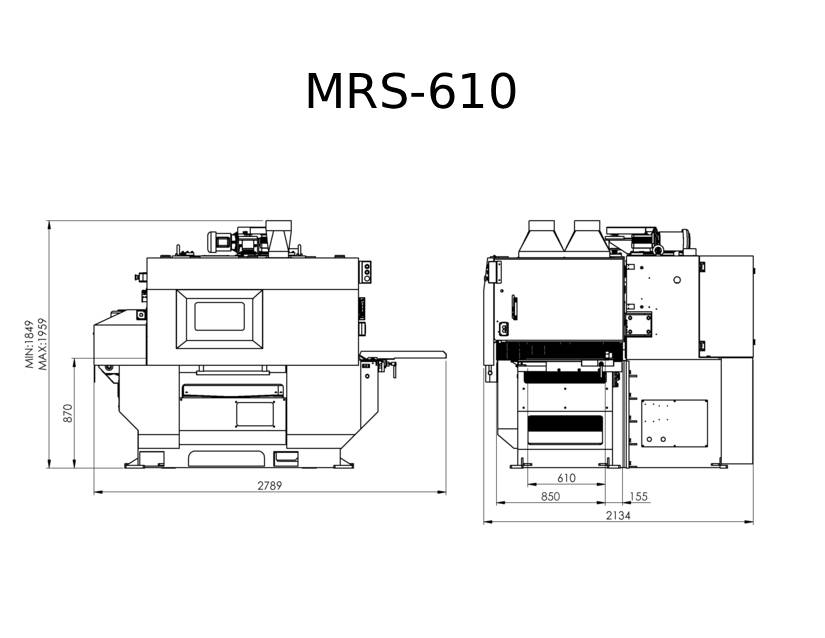

Specification
| MRS-610 | |
|---|---|
| Saw arbor motor | 75HP / 100HP / 125HP |
| Feed motor | 5HP |
| Saw arbor lifting motor | 0.5 HP |
| Hold down roller elevating motor | 0.5 HP |
| Max. cutting width | 610 mm |
| Max material width can pass through | 760 mm |
| Min. material length | 810 mm |
| Max. cutting thickness | 110 mm(14") / 135 mm(16") / 150 mm(18") |
| Max. sawblade diameter | Ø455 mm(18") |
| Min. sawblade diameter | Ø355 mm(14") |
| Saw blade bore | Ø70 mm |
| Saw arbor diameter | Ø55 mm |
| Saw arbor speed | 3200~3500rpm |
| Variable feed speed | 5~40 M/min |
| Dust hole diameter | Ø100mm×1,Ø200mm×2 |
*We reserve the right to amend any of the above specifications without prior notice.
comparison

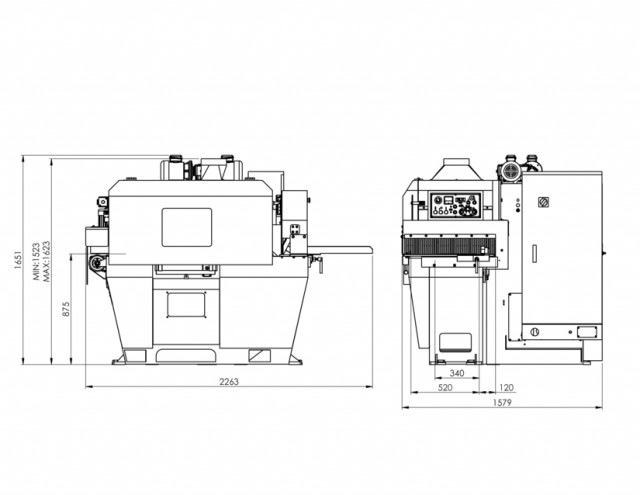

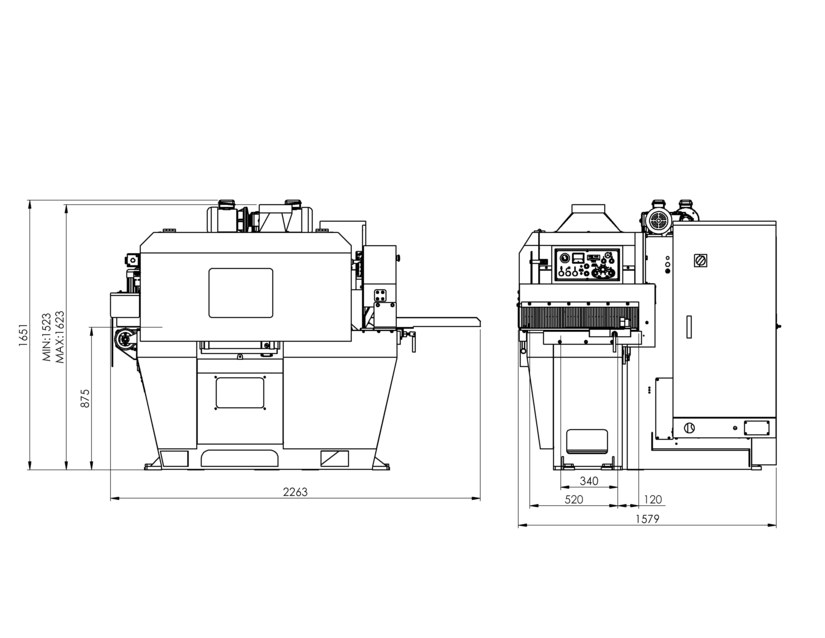

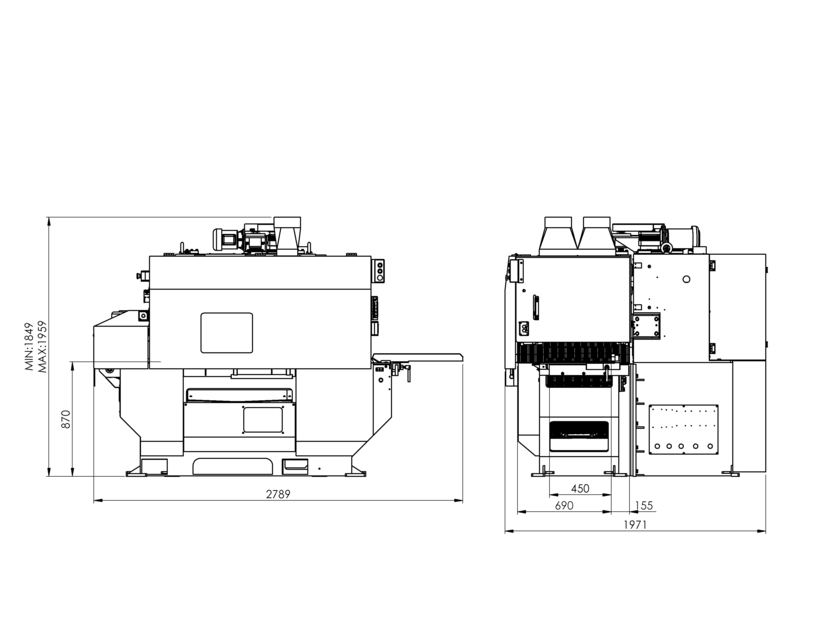

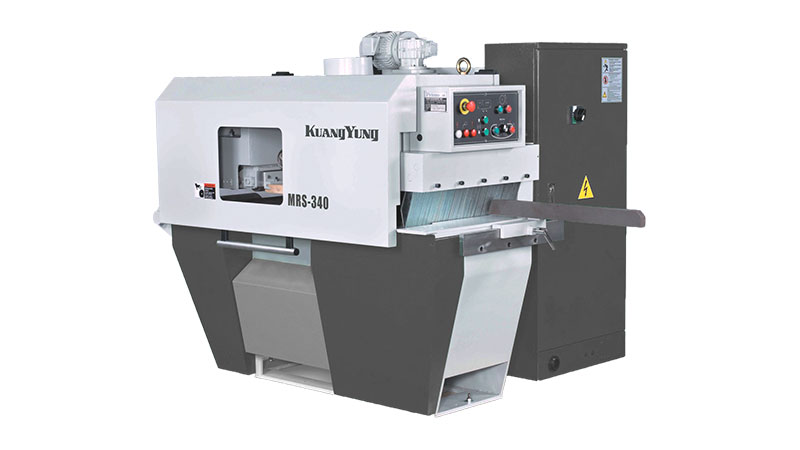

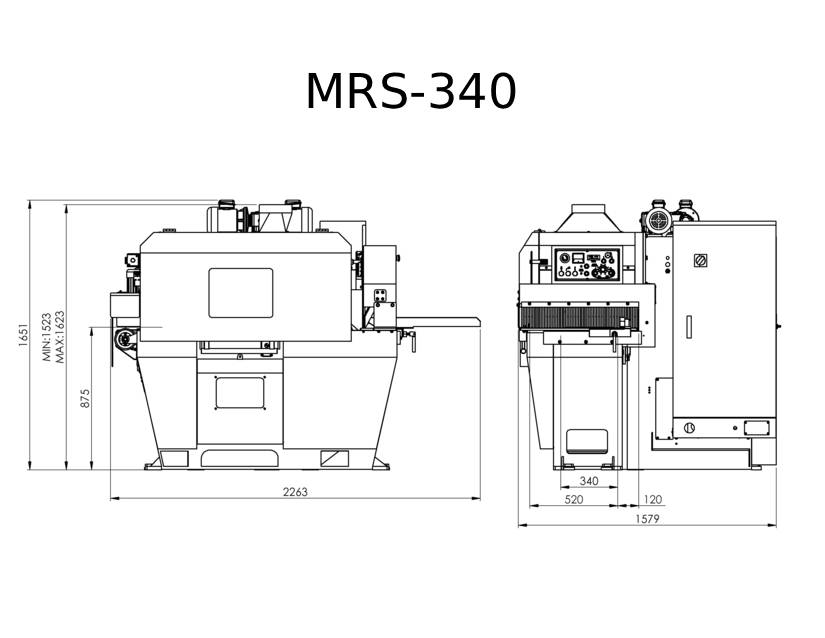

| MRS-340 | MRS-450 | MRS-610 | |
|---|---|---|---|
| Dimensions |  |
 |
 |
| Max. cutting thickness | 50mm (10") | 60mm (12") | 75mm (12") |
| 110mm (14") | |||
| Max. citting width | 340mm | 450mm | 610mm |
| Min. material length | 450mm | 610mm | 810mm |
| Max. sawblade diameter | Ø355mm(14") | ||
| Mini. sawblade diameter | Ø250mm(10") | Ø305mm(12") | |
| Saw blade bore | Ø70mm | ||
| Saw arbor diameter | Ø55mm | ||
| Saw arbor speed | 3700~4500 rpm | 4500 rpm | 4200/4500/3800 rpm |
| Saw arbor motor | 50,60HP | 75HP | 50, 60, 75, 100HP |
| Feed motor | 3HP | 5HP/3HP | |
| Variable feed speed | 12~40M/min | 8-50M/min | 6~30M/min |
| Dust hole diameter | Ø100mm×1 , Ø200mm×2 | ||
*We reserve the right to amend any of the above specifications without prior notice.
