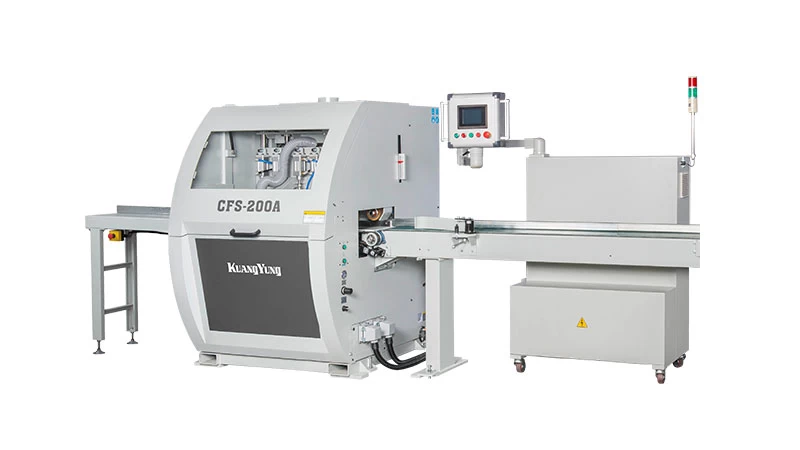

CFS-200A

CFS 200A

Cross-cut Saw

CFS-200A

Tags :
Cross-cut

Semi Optimizing Cross-cut Saw

Cut-Off Saw Series 200A
Suitable for mass production of wood preparation or finger-jointed lumber prodution.

Main Features
  • The productivity 3-5 times higher than a mount machine.
  • Save more than 3% of wood material for finger-jointed lumber production.
  • Stable NC system provides long life time. Customers are all giving good reputations.
  • Icon guided operating on a Colored Touch Screen. Easy recognized and operating.
  • CE approved by German TÜV that protects safety of the operator.
Inquire

Features of Cut-Off Saw

  • Suitable for mass production of wood preparation or finger-jointed lumber production.
  • Heavy duty type semi-optimizing cut-off saw.
  • Using optional crabwise auto-feeding table can increase productivity by 10%.
  • Suitable for processing long or heavy lumber.
  • Adopt Mitsubishi servo motor and driver, providing high torque and high stability.
  • An economical approach to CNC cutting !
  • High production! User-friendly operation !
  • Provides a high cutting accuracy at feed speed up to 150 M/min.
Servo Motor Device

Servo Motor Device

  • Employs Mitsubishi servo motor drive featuring precise calculations and high efficiency.
Infeed-Outfeed Rollers

Infeed & Outfeed Rollers

  • 5 infeed rollers and 2 outfeed rollers ensure high stability and cutting accuracy for long and heavy wood.

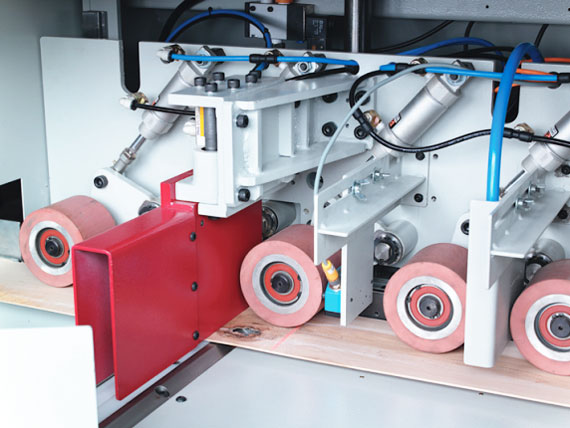

Servo Cutting Device -Optional

MaterIal Clamping Device (Optional)

  • Designed for cutting thin material (2mm) with increased stability

Comparison

  CFS-100 CFS-200A
Cutting speed 80 times/min 150 times/min
Feedrate 80 M/min 150 M/min
Productivity 6400 M/8 hours 8000 M/8 hours
No of rollers 5 pieces 7 pieces
Max. table load 25 kgs 40 kgs
Feed motor 2 Kw (TECO) 3.5 Kw (Mitsubishi )
Maximum circular saw dia. 455 mm (18") 540 mm (21")
Machine weight 900 kgs 1250 kgs
Material's limitation Length under 4M is suggested Applicable for 4M and above

*Remark: "Productivity" varies on factors such as "material length", "cutting length" and "operation conditions" etc.

CFS-200A

A conveyor system with multiple wooden planks being transported in a woodworking facility, featuring an industrial rip saw for processing the wood.
