Cross-cut Saw
CFS-200AB
Tags :
Cross-cut
Optimizing

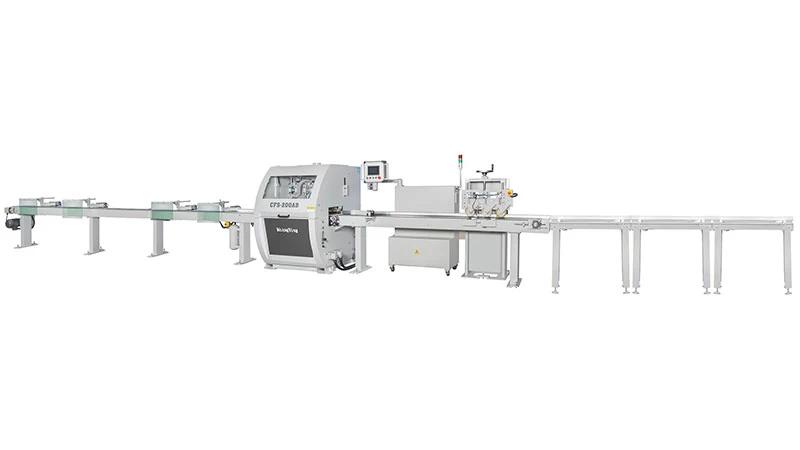

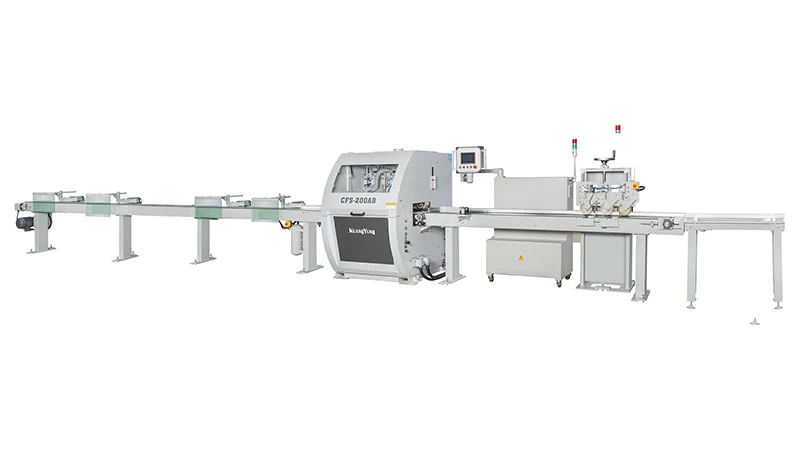

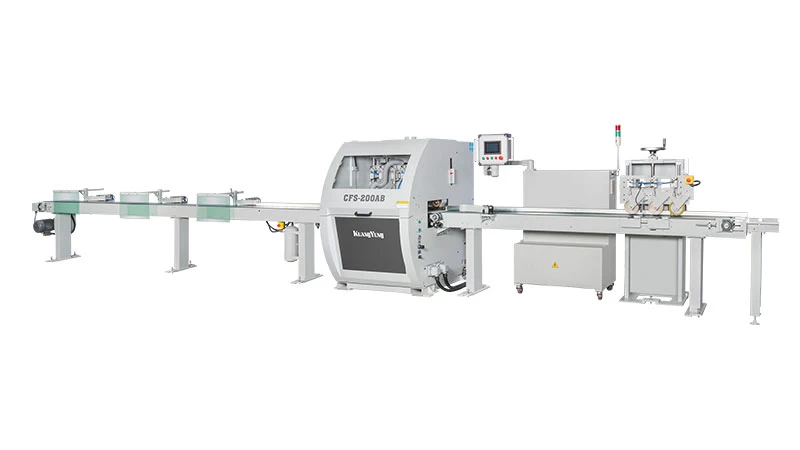

Full Optimizing Cross-cut Saw
Cut-Off Saw Series 200AB
Designed for finger-jointed lumber production or wood preparations of anterior stage.
Main Features
- High cost-performance ratio full optimized cut off saws.
- Colored touch screen operation with icon guidance. Easy recognized and operate.
- The cutting function includes: a. minimum waste. b. most valuable setting.
- Grading A, B with marking line available and remainder merging function to reach timber cutting optimization.
Features of Cut-Off Saw
- Using multiple axes controller that provides high speed calculation feature. Up to 20 sets of dimension setting available for optimized cutting.
- Simulated learning function is available on the touch screen. Operator learning friendly.
- Connecting with USB flash drive to output the production data to Excel file is available.
- Connecting with USB for software upgrading and troubleshooting is available.
- Using Mitsubishi servo motor drive feeding system that provides high speed reacting, high torque and comprehensive protecting feature.
- Seven (7) sets top and bottom pressure roller provide the unique stability on crooked timbers cutting.
- (Optional) Servo motor drive cutting is available. Provide high efficiency and no compressed air consumption compare to the pneumatic cutting.
MaterIal Clamping Device (Optional)
- Designed for cutting thin material (2mm) with increased stability
Servo Motor Device
- Employs Mitsubishi servo motor drive featuring precise calculations and high efficiency.
Infeed & Outfeed Rollers
- 5 infeed rollers and 2 outfeed rollers ensure high stability and cutting accuracy for long and heavy wood.
Specification
| CFS-200AB | |
|---|---|
| Saw arbor motor | 10 HP |
| Feed servo motor | 5 kW / Optional: 7 kW |
| Saw spindle speed | 4000 R.P.M (50Hz) |
| Optional: 3500 R.P.M (50Hz) | |
| Feed speed | 200 M/min |
| Saw blade diameter | 455 mm (18") |
| Optional: 505 mm (20") / 540 mm (21") | |
| Saw blade bore | Ø40 mm |
| Cross section cutting | See cutting range diagram |
| Dust outlet diameter | Ø150 mm x 2 & Ø100 mm x 1 |
*We reserve the right to amend any of the above specifications without prior notice.
